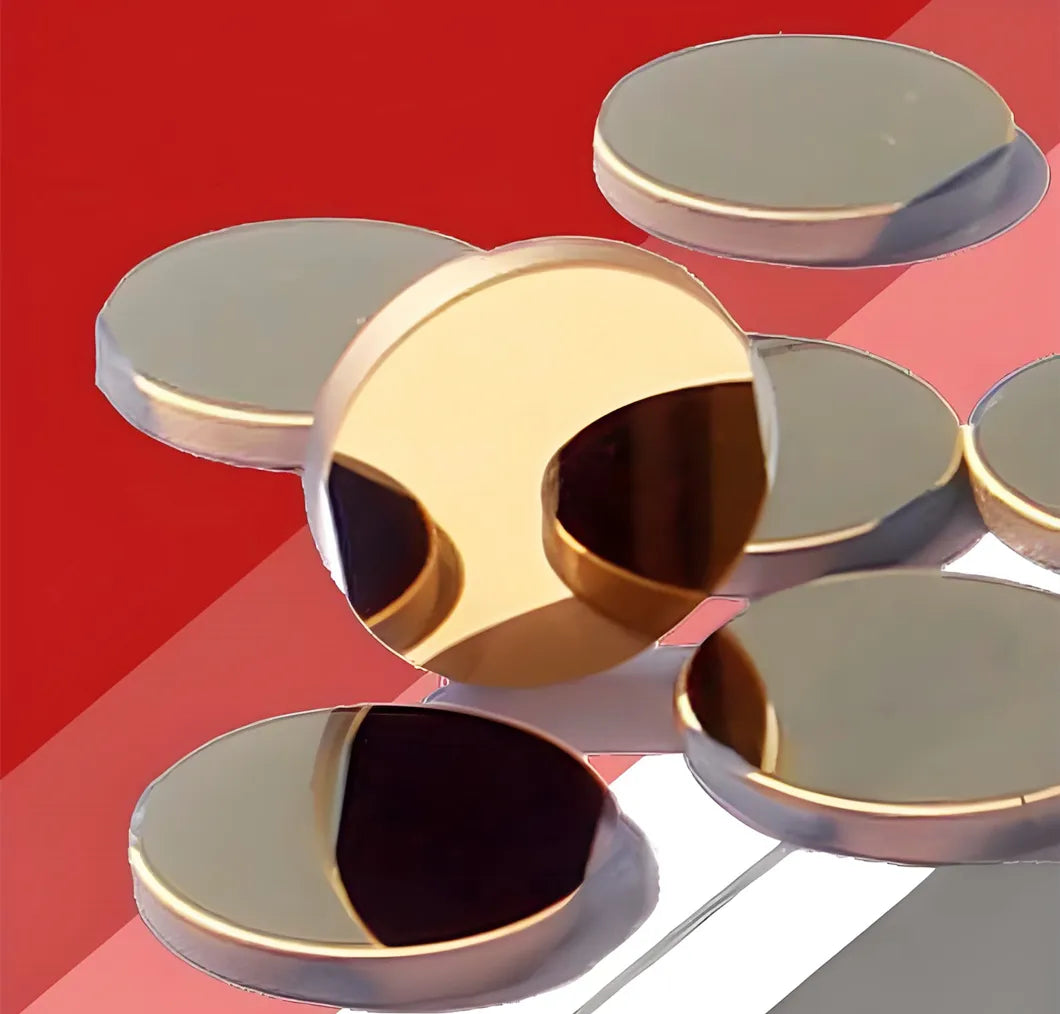

How Does the Focal Length of Laser Engraver Lens Affect the Engraving Process?

The focal length of laser engraver lens refers to the distance from the optical center of the lens to its focal point. The focal point is the point where the laser beam has the most concentrated energy after focusing. Usually at this point, the laser spot diameter is the smallest and the energy density is the highest.
The focal length of the lens of a laser engraver has an important impact on the engraving process, which is mainly reflected in the following aspects:

1. Beam Focusing

The focal length determines the focusing ability of the laser beam. The shorter the focal length, the smaller the focus of the laser beam and the higher the energy concentration. This means that when engraving, a smaller cutting point can be formed on the surface of the material, resulting in a more detailed and precise engraving effect.

2. Engraving Depth

The focal length of the laser engraver lens affects the penetration depth of the laser beam into the material. Shorter focal lengths usually produce deeper engraving effects because the laser energy is more concentrated and can penetrate the material more easily. Longer focal lengths may cause energy dispersion and the engraving depth will be reduced.

3. Engraving Speed

The focal length also affects the engraving speed. When the focal length is longer, although the laser power may be lower, it may be able to move at a faster speed because the laser energy is dispersed over a larger area. Conversely, a laser head with a shorter focal length and better focus may require a slower speed when engraving at the same power to avoid overheating or burning the material.

4. Material Adaptability

The response of different types of materials to the laser is also affected by the focal length. For example, some materials require higher laser energy to be effectively engraved, and using a short focal length laser engraver lens can increase the energy density, thereby processing these materials more effectively.

5. Pattern Accuracy

When engraving more complex or fine patterns, short focal length lenses can provide more accurate details because the focus is smaller and the laser beam can better control the effect. Longer focal lengths may cause blurred details because it affects the distribution of energy.

In summary

The focal length of the laser engraver lens affects the engraving effect, depth, speed, and pattern accuracy. When choosing the appropriate focal length, users need to consider the type and characteristics of the material being engraved, the expected engraving effect, and the working parameters of the machine. The right focal length can effectively improve the quality and efficiency of engraving.
