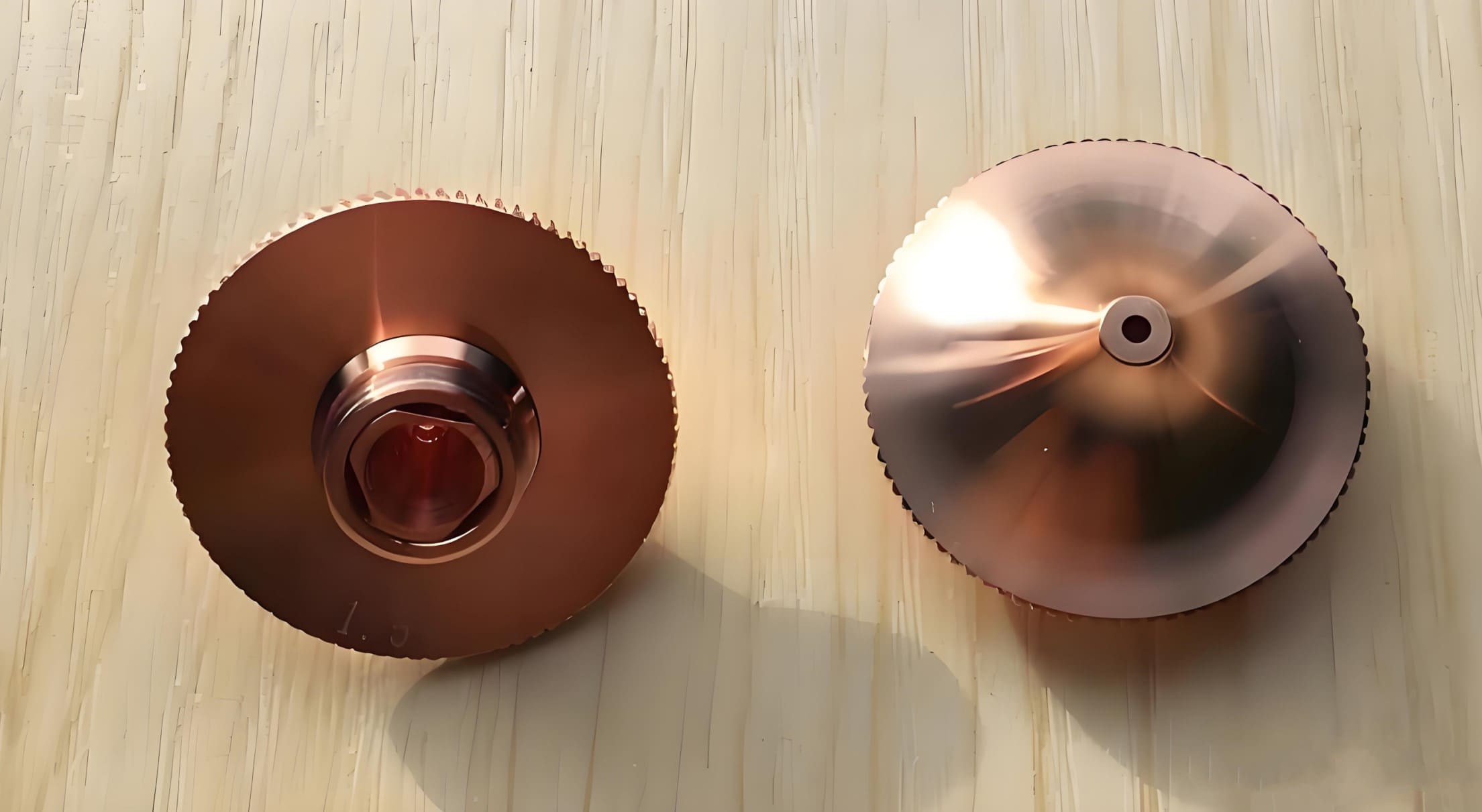

In laser cutting, the nozzle plays a vital role as it directs the laser beam and assists the cutting process by delivering assist gas to the cutting area. There are several types of nozzle laser cutting configurations and designs, each tailored to specific applications and materials. The following are the main types of laser cutting nozzles:

1. Standard Nozzle Laser Cutting

Description: This is the most common type of nozzle used in laser cutting applications.
Function: It effectively focuses the laser beam on the material while directing assist gas (such as oxygen, nitrogen, or air) to assist the cutting process.
Application: Suitable for a wide range of materials including mild steel, stainless steel, and aluminum.

2. Conical Nozzle

Description: This type of nozzle laser cutting has a conical shape that helps widen the beam and improve the cut edge quality.
Function: The conical geometry helps create a more concentrated energy distribution, which is beneficial for cutting thicker materials.
Application: Typically used for thick plate cutting and materials that require a specific cut edge finish.

3. Focusing Nozzle

Description: The focusing nozzle is designed to produce a smaller laser beam focal point.
Function: It allows for precise cutting of thinner materials and improves cutting speed and quality.
Application: Particularly useful for applications requiring high precision, such as intricate designs and small parts.

4. Swirl Nozzle

Description: This nozzle laser cutting is designed to introduce assist gas in a swirling motion.
Function: Swirling gas can enhance the removal of molten material, increase cutting speed, and reduce the heat-affected zone.
Application: Commonly used in cutting applications where slag and chip removal is critical, and in thicker materials where heat build-up can be an issue.

5. Dual or Multi-Gas Nozzle

Description: A nozzle that can supply two or more assist gases simultaneously.
Function: By using different gases, such as oxygen for cutting and nitrogen for cleaning edges, dual nozzles can optimize the cutting process.
Application: Ideal for applications that require different cutting conditions or material types in a single operation.

6. Venturi Nozzle

Description: This nozzle is designed with the Venturi effect to create a vacuum that helps to draw away molten material and enhance gas flow.
Function: The design improves kerf width and cut edge quality while helping to effectively remove chips.
Application: Typically used for thicker materials or materials that produce more slag during cutting.

7. Adjustable Nozzle

Description: Adjustable nozzles allow the focal length or diameter of the laser beam to be changed.
Function: This flexibility enables operators to adjust cutting parameters for different materials and thicknesses without having to replace the entire nozzle.
Application: Ideal for dynamic production environments that process multiple materials or thicknesses.

8. Ceramic Nozzle

Description: These nozzles are made of ceramic materials that are highly durable and wear-resistant.
Function: They help maintain uniform airflow and can be used in high-temperature cutting applications.
Application: Particularly effective in industries where abrasive cutting environments are prevalent, such as high-volume cutting operations.

9. Cooling Nozzle

Description: This nozzle laser cutting contains a cooling mechanism to handle the heat generated during the laser cutting process.
Function: It helps maintain the optimal cutting temperature and prevents thermal deformation of the material being cut.
Application: Very useful in applications where thermal management is critical to maintaining material properties.

Conclusion

The choice of nozzle laser cutting type depends largely on the material being cut, the thickness of the material, the desired cutting speed, and the desired surface quality. Understanding the different types of nozzles and their applications can help operators optimize their laser cutting processes for greater efficiency and effectiveness.
