What is a Rotary Screw Compressor?

A rotary screw compressor is a type of positive displacement compressor that uses two interlocking helical screws, known as rotors, to compress air or gas. This technology is widely used in various industrial applications due to its efficiency, reliability, and ability to provide a continuous supply of compressed air. In this article, we will explore the working principle, components, advantages, disadvantages, applications, and maintenance of rotary screw compressors.

Working Principle

The rotary screw compressor operates on a simple yet effective principle. It consists of two rotors, one male and one female, that rotate in opposite directions within a cylindrical housing. As the rotors turn, they create a series of chambers that trap air or gas and compress it as it moves through the compressor. The working cycle can be divided into three processes: suction, compression and exhaust. As the rotor rotates, each pair of meshing teeth completes the same working cycle one after another.
Intake Phase: The process begins when ambient air enters the compressor through an intake valve. The rotors are designed to create a vacuum that draws in the air.
Compression Phase: As the rotors continue to turn, the trapped air is forced into progressively smaller chambers. The volume of these chambers decreases, which increases the pressure of the air. This compression occurs continuously, allowing for a steady flow of compressed air.
Discharge Phase: Once the air reaches the desired pressure, it is expelled from the compressor through a discharge valve. The compressed air can then be directed to various applications or stored in a tank for later use.
The entire process is continuous, which means that rotary screw compressors can operate for extended periods without interruption, making them ideal for industrial applications where a constant supply of compressed air is required.

Components of a Rotary Screw Compressor

A rotary screw compressor consists of several key components that work together to ensure efficient operation:

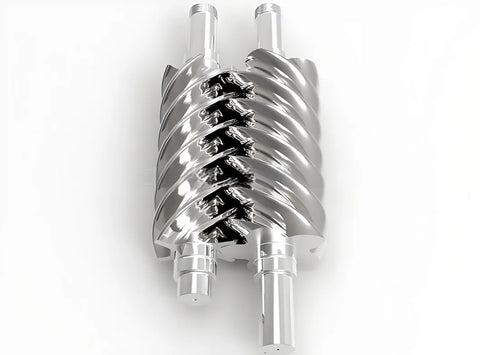

Rotors: The heart of the compressor, the rotors are typically made of high-strength steel and are precision-engineered to ensure a tight fit and efficient compression.
Cylindrical Housing: The rotors are housed within a cylindrical casing that provides structural support and contains the compressed air.
Intake and Discharge Valves: These valves control the flow of air into and out of the compressor. The intake valve opens to allow air in, while the discharge valve opens to release the compressed air.
Lubrication System: Rotary screw compressors require lubrication to reduce friction between the moving parts and to cool the compressor. This is typically achieved through an oil injection system that circulates oil throughout the compressor.
Cooling System: To prevent overheating, rotary screw compressors are equipped with cooling systems, which may include air or water cooling, depending on the design and application.
Control Panel: Modern rotary screw compressors come with advanced control panels that allow operators to monitor performance, adjust settings, and troubleshoot issues.

Advantages of Rotary Screw Compressors

Rotary screw compressors offer several advantages over other types of compressors, such as reciprocating compressors:
Continuous Operation: Unlike reciprocating compressors, which operate in cycles, rotary screw compressors provide a continuous flow of compressed air, making them suitable for applications with high air demand.
High Efficiency: Rotary screw compressors are known for their energy efficiency. They can operate at lower power levels while delivering the same amount of compressed air, resulting in lower energy costs.
Low Noise Levels: These compressors operate more quietly than reciprocating compressors, making them ideal for environments where noise reduction is important.
Compact Design: Rotary screw compressors have a smaller footprint compared to other types of compressors, allowing for easier installation in limited spaces.
Reduced Maintenance: With fewer moving parts and a simpler design, rotary screw compressors generally require less maintenance than reciprocating compressors.
Versatility: They can be used in a wide range of applications, from manufacturing and construction to food processing and pharmaceuticals.

Disadvantages of Rotary Screw Compressors

Despite their many advantages, rotary screw compressors also have some drawbacks:
High Cost: Since the rotor tooth surface of the screw compressor is a spatial curved surface, it needs to be processed on expensive special equipment using special tools. In addition, there are also high requirements for the processing accuracy of the screw compressor cylinder.
Cannot be Used in High-Pressure Occasions: Due to the limitations of rotor stiffness and bearing life, screw compressors can only be used in medium and low pressure ranges, and the exhaust pressure generally does not exceed 3MPa.
Cannot be Used in Micro Occasions: Screw compressors rely on gap sealing gas. Generally, screw compressors have superior performance only when the volume flow rate is greater than 0.2m³/min.

Applications of Rotary Screw Compressors

Rotary screw compressors are used in a variety of industries and applications, including:
Manufacturing: They are commonly used to power pneumatic tools, conveyor systems, and other machinery in manufacturing plants.
Construction: Rotary screw compressors provide compressed air for tools such as jackhammers, nail guns, and air drills on construction sites.
Food and Beverage: In the food industry, these compressors are used for packaging, bottling, and other processes that require clean, dry air.
Pharmaceuticals: They are used in the production of pharmaceuticals, where the quality of compressed air is critical to maintaining product integrity.
Automotive: Rotary screw compressors are used in automotive manufacturing for painting, assembly, and other processes.
HVAC Systems: They can be used in heating, ventilation, and air conditioning systems to provide compressed air for various functions.

Maintenance of Rotary Screw Compressors

Proper maintenance is essential to ensure the longevity and efficiency of rotary screw compressors. Key maintenance practices include:
Regular Oil Changes: The oil used for lubrication should be changed regularly to prevent contamination and ensure optimal performance.
Air Filter Replacement: Air filters should be checked and replaced as needed to maintain airflow and prevent dirt and debris from entering the compressor.
Cooling System Maintenance: The cooling system should be inspected regularly to ensure it is functioning properly and to prevent overheating.
Monitoring Performance: Operators should regularly monitor the compressor's performance metrics, such as pressure, temperature, and oil levels, to identify any potential issues early.
Professional Inspections: Periodic inspections by qualified technicians can help identify and address any mechanical issues before they lead to significant downtime.

Summary

A rotary screw compressor is a highly efficient and reliable solution for providing compressed air in various industrial applications. Its continuous operation, energy efficiency, and low noise levels make it a preferred choice for many businesses. While there are some disadvantages, such as higher initial costs and dependence on lubrication, the benefits often outweigh the drawbacks. With proper maintenance and care, rotary screw compressors can provide years of reliable service, making them an essential component in modern industrial operations.
