15KW Air Compressor for Laser Engraver

Type:
Permanent magnet variable frequency integrated screw compressor
Power:
15KW
In stock and ready for shipping

Product Information

TSC 15KW air compressor for laser engraver is specially designed for laser equipment, using advanced oil-free technology to eliminate oil pollution, extend equipment life and reduce maintenance costs.

Frequently Bought Together

Get the latest quotes for laser air compressor

Our sales staff will contact you

Specifications of Rotary Screw Air Compressor

Weight 515Kg Working principle Volumetric
Cooling method Air cooling Exhaust volume 20.8/19.8/16.9m³/min
Custom processing Yes Exhaust pressure 0.8/0.7/1Mpa
Lubricating oil volume 110 Noise 64±2dB(A)
Drive mode Permanent magnet synchronous Power supply 380V/50Hz
Starting mode Frequency conversion Dimensions (L*W*H) 1200*1000*1400mm

Complete compressed air systems tailor-made

Working of 15KW Laser Air Compressor

We provide comprehensive after-sales service and technical support to ensure that you have no worries during use.

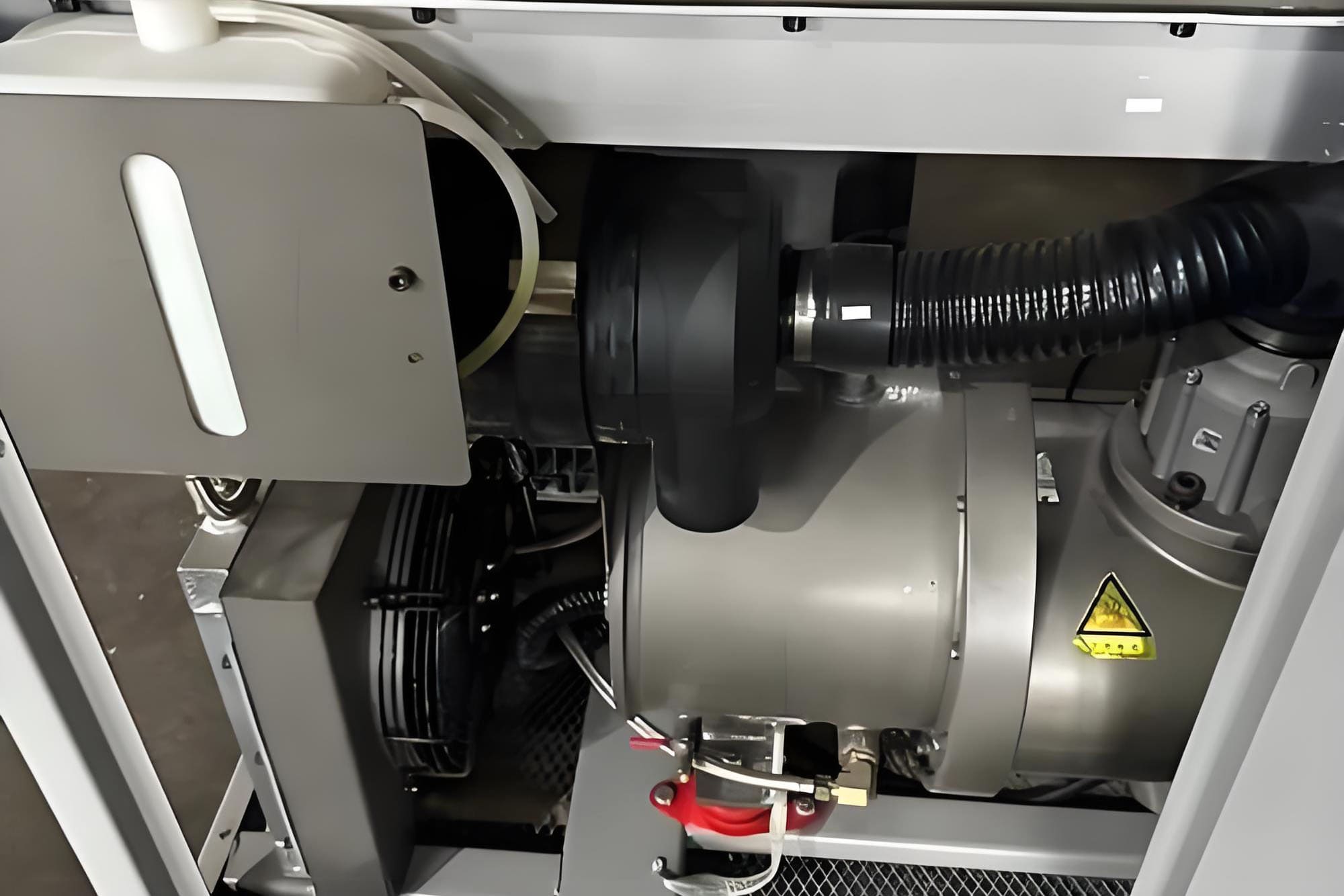

Advantages of 15KW Air Compressor for Laser Engraver

Sufficient air volume

Sufficient exhaust volume, constant air pressure

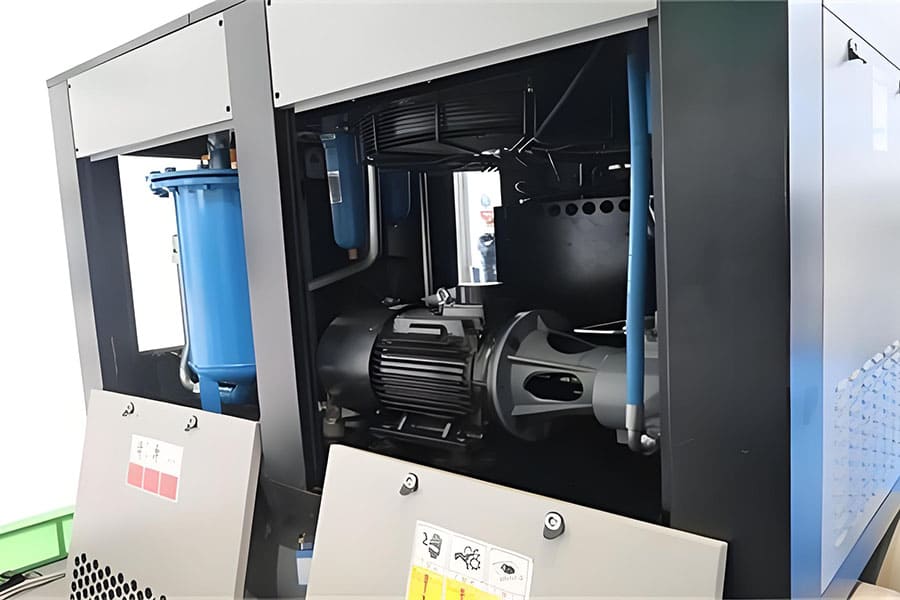

Advantages of 15KW Air Compressor for Laser Engraver
Advantages of 15KW Air Compressor for Laser Engraver

Easy to use

Unattended for 24 hours, no-load operation all day, automatic start, automatic shutdown when fully loaded

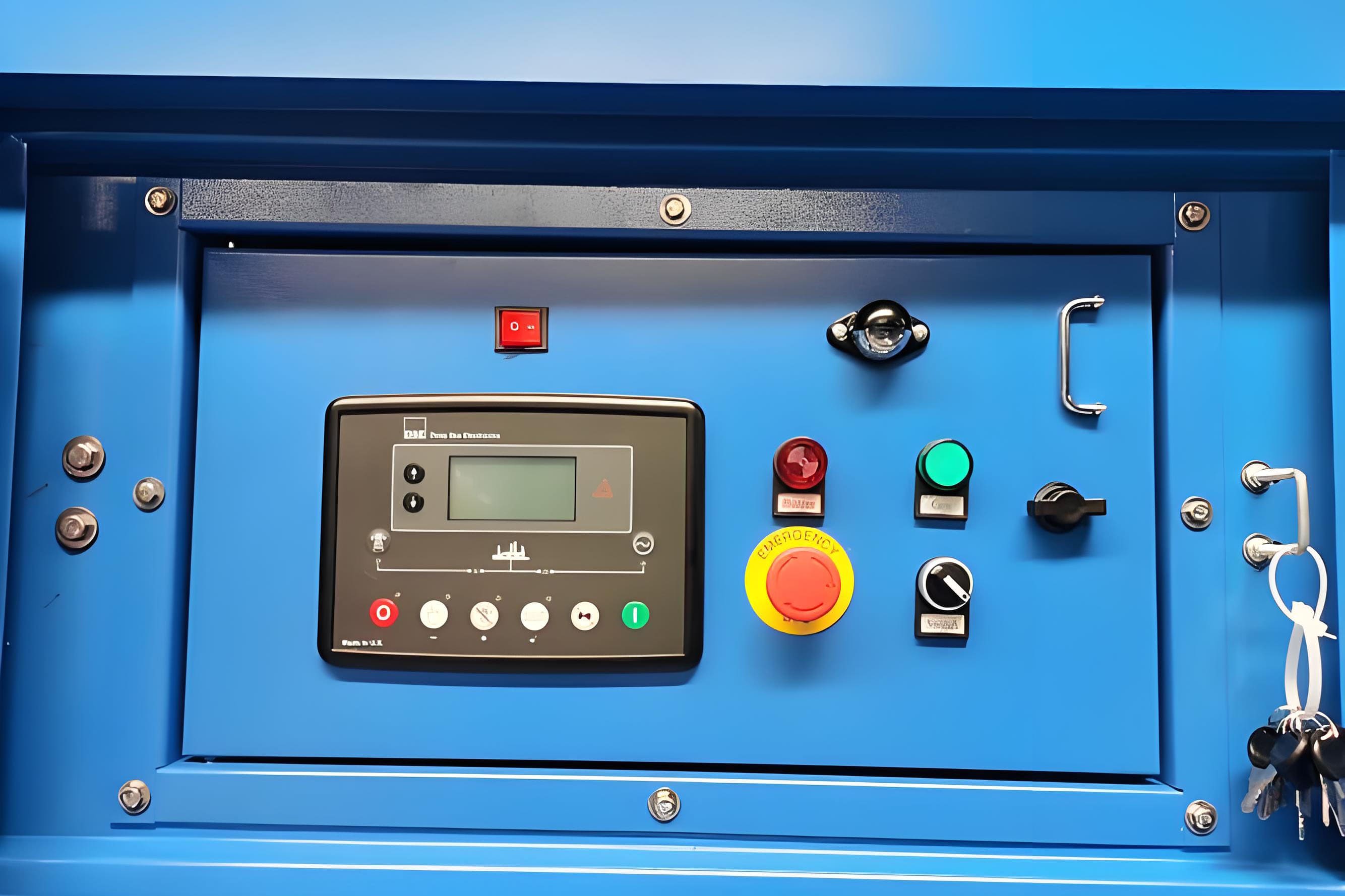

Intelligent design

Complete microcomputer, control system, cooling system, imported filtration system

Advantages of 15KW Air Compressor for Laser Engraver

Rotary Screw VS. Piston Air Compressors

Rotary screw air compressor

  • Through the meshing of two spiral rotors, air is continuously sucked in and compressed to provide a stable gas flow and pressure.
  • Provides a continuous and stable gas flow, suitable for laser cutting and welding applications that require a continuous gas supply.
  • High efficiency, suitable for long-term continuous operation, low energy consumption, suitable for large-scale laser processing.
  • Relatively simple maintenance, usually only need to replace oil and filter regularly, low failure rate.

Piston air compressor

  • The air is compressed by the reciprocating motion of the piston in the cylinder, the gas output is intermittent, and the flow and pressure will change with the movement of the piston.
  • The output gas flow fluctuates greatly, which is suitable for intermittent needs, but may affect the stability and quality of laser cutting.
  • Relatively low efficiency, suitable for short-term use, high energy consumption when running for a long time.
  • The maintenance frequency is high, and the cylinder, piston ring and valve need to be checked regularly, and the failure rate is relatively high.
15KW 16KG Laser Air Compressor Parts

15KW 16KG Laser Air Compressor Parts
