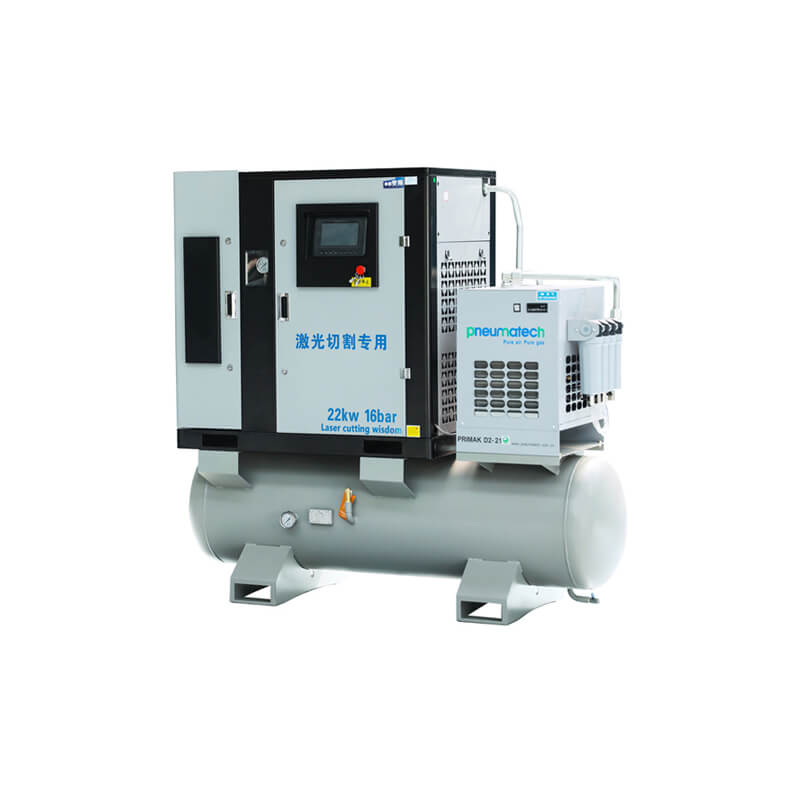

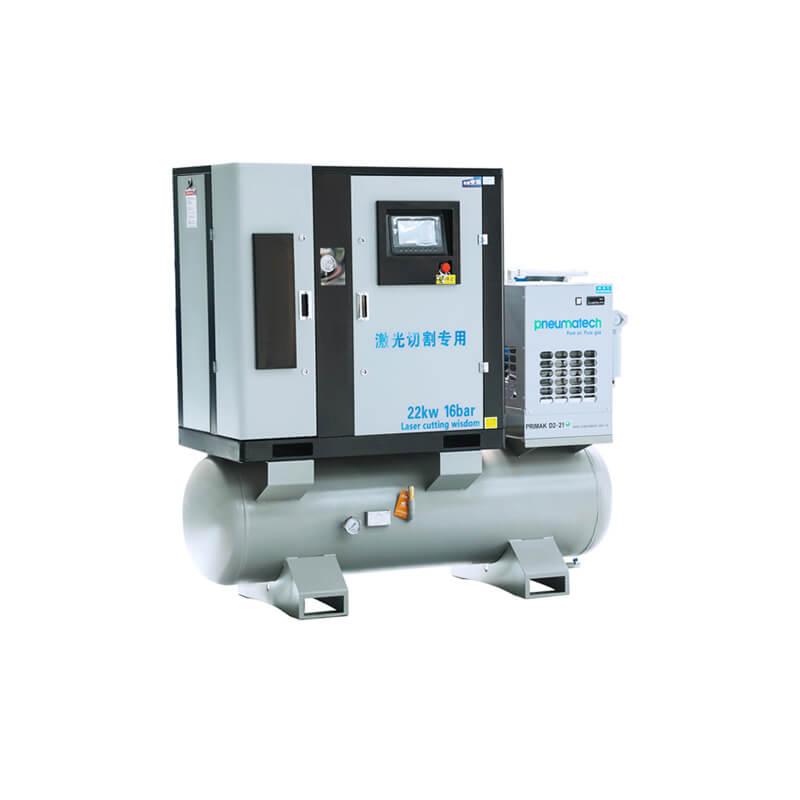

Specifications of 22KW Oil Free Air Compressor
| Type | Oil-free screw | Power | 22KW |
| Pressure of Work | 16Bar | Noise | 58 |
| Speed | 1440 | Voltage | 380 |
| Exhaust volume | 1.2m³/min | Weight | 3790kg |
| Compressed medium | Air | Lubrication method | Oil-free air compressor |
| Cooling method | Water-cooled | Transmission method | Combined transmission |
| Custom processing | Yes | Working pressure | 15-40 kg |
Details of 22KW Oil Free Screw Compressor
Efficient motor
The oil free rotary screw air compressor main engine is finely optimized. Large rotor, low speed (direct drive within 3000R/MIN main engine speed); near isothermal compression, very low temperature rise of the main engine (air cooling: ambient temperature +15°C. Water cooling: ambient temperature +10°C), low exhaust dew point.
Centrifugal fan
The silent design is adopted, the labyrinth air intake is adopted, and the low-speed centrifugal fan refers to the simulated cooling air flow, which successfully reduces the noise of air friction.
Water-gas separation barrel
The innovative stainless steel water-gas separation barrel and the all-stainless steel pipeline design avoid rust and corrosion while being cleaner and having a longer service life. The system does not contain lubricating oil, and there is no risk of oil pollution. The compressed air washed with water is very clean.
Laser air compressor purchase: oilless air compressor vs oil air compressor?
Oilless Air Compressor
- Oil-free air compressors do not require lubricating oil during the air compression process.
- Because there is no oil involved, the compressed air is cleaner and purer.
- No need to frequently replace lubricating oil, low maintenance cost, and more convenient operation.
- The price of oil-free air compressors is relatively high, and the initial investment will be larger.
Oil Lubricated Air Compressor
- The technology of oil-containing air compressors is mature, the production cost is low, and the market price is affordable.
- Because of oil lubrication, the operation is smoother, the heat dissipation effect is good, and it is suitable for long-term continuous work.
- The compressed air may contain oil, and the scope of application is relatively limited.
- The lubricating oil and filter element need to be replaced regularly, the maintenance cost is high, and the operation is relatively complicated.
Lifetime warranty
Factory direct sales
Energy saving and low noise
