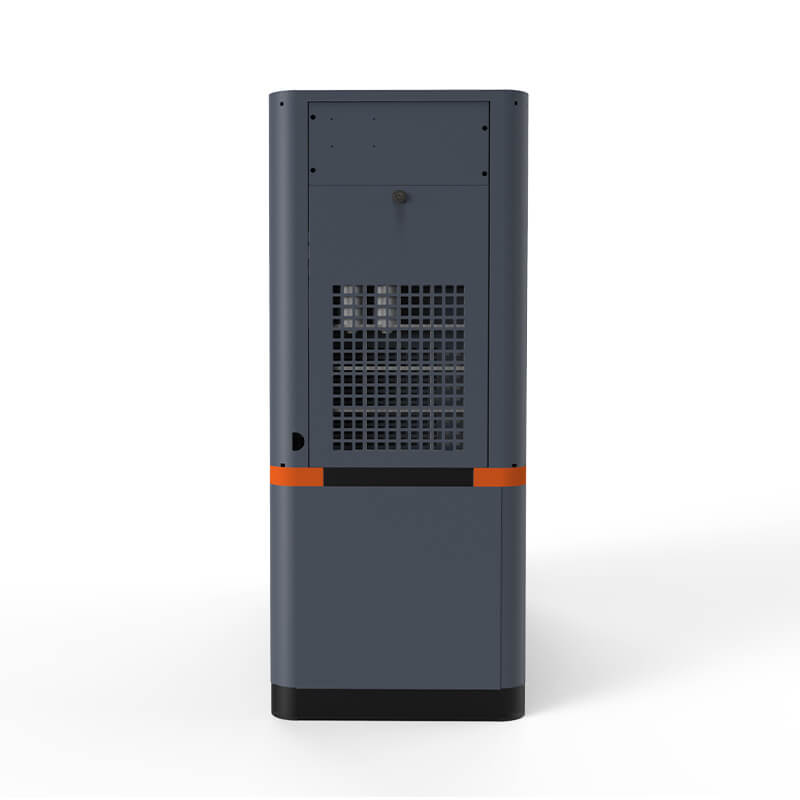

45kw 16bar/20bar Rotary Screw Type Box Air Compressor

Product Information

Looking for a solution that can provide stable and efficient compressed air? TSC 45kw rotary screw type air compressor is your ideal choice. This air compressor uses advanced rotary screw technology to ensure continuous and uninterrupted operation, which is very suitable for industrial environments that require high pressure and large flow.

Maximize Energy Savings.

Whisper-Quiet Operation.

Price
Have a question?

Detailed Features

Integrated Installation & Convenience

Our cabinet-style screw air compressor integrates the compressor, air storage tank, refrigerated air dryer, and precision filter into one compact unit. This design simplifies installation, enhances portability, reduces footprint, and offers lightweight convenience for easy operation.

Enhanced Moisture Removal

Featuring a high-capacity refrigerated air dryer with a built-in cyclone separator, our compressor achieves superior dehumidification, ensuring dry air output for optimal performance.

Advanced Five-Stage Filtration

The combined five-stage filter utilizes high-precision filter elements to tackle various contaminants. This versatility makes it suitable for a broad range of applications, providing cleaner air for all your needs.

Easy and Efficient Operation

Designed for simplicity, our cabinet-style screw air compressor offers effortless operation. The all-in-one construction not only makes it user-friendly but also ensures efficiency by integrating essential components into a single unit for seamless functionality.

Box Air Compressor Technical Parameter

Model TSC22-16 TSC37-16 TSC45-16 TSC55-16 TSC30-30
Rated Power 22 kW 37 kW 45 kW 55 kW 30 kW
Exhaust Pressure 13 bar 16 bar 16 bar 16 bar 30 bar
Volume Flow 2.2 m³/min 3.5 m³/min 5.0 m³/min 6.0 m³/min 3.2 m³/min
Main Unit Type Single stage
Cooling Method Air Cooling
Air Tank Capacity 300L
Volume Flow 600kg 720kg 780kg 850kg 720kg
Dimensions 2300x700x1600mm 2300x700x1600mm 2300x700x1600mm 2300x700x1600mm 2300x700x1600mm

Advantages of Twin Rotary Screw Type Air Compressor

Common types of air compressors include screw type and piston type. The air compressors commonly used in the laser industry are basically screw type air compressors, and they are twin-screw air compressors.

  • Twin screw type air compressors overcome the shortcomings of single-screw air compressors, such as unbalanced and easily damaged bearings, and have the advantages of long life, low noise, and more energy saving.
  • The design of twin-screw air compressors reduces noise and vibration during operation.
  • The design of twin rotary screw type air compressors ensures minimal energy loss during the compression process.

Lubricated Screw Compressor Core Component

Rotary Screw Type Box Air Compressor Host

Host

Permanent Magnet Motor

Pneumatech Cold Drying Machine

Rotary Screw Type Box Air Compressor Frequency Converter

Inovance Frequency Converter

Inside Machine

Rotary Screw Type Box Air Compressor Gas Tank

Gas Tank

Filter Fevice
