Laser Collimating Lens & Laser Focusing Lens

Laser Collimating Lens & Laser Focusing Lens

Looking for a solution to improve the performance of your Raytools laser cutting equipment? Our laser focusing lens and collimator lens for laser kits are your ideal choice. Designed specifically for Raytools laser cutting heads, these lenses and lens tubes ensure ultra-high optical precision and durability for a variety of industrial applications.

Price: $100

Taxes and shipping calculated at checkout

Exceptional Customer Service

At TSCbro, your satisfaction is our top priority. We pride ourselves on offering prompt responses to your inquiries and a lifetime of customer support. Even after your warranty period expires, you can count on us for exceptional service. Choose TSCbro for a customer service experience that truly extends the life of your investment.

Compatible Machines

This nozzle is specifically engineered for laser cutting nozzles and is highly versatile. It's compatible with a range of fiber laser cutting head from various brands, including Raytools, WSX Laser, Precitec. Whether you are looking for laser nozzle tips or contemplating laser cutting nozzle selection, our product promises fiber laser cutting nozzle compatibility and exceptional performance. Not sure if this nozzle is right for your laser cutting machine nozzle? Feel free to contact us for expert advice and assistance.

Size: D28F100 Collimating Set

D28F100 Collimating Set

D30F100 Collimating Set

D28F125 Focusing Set

D20F150 Focusing Set

D30F150 Focusing Set

Quantity

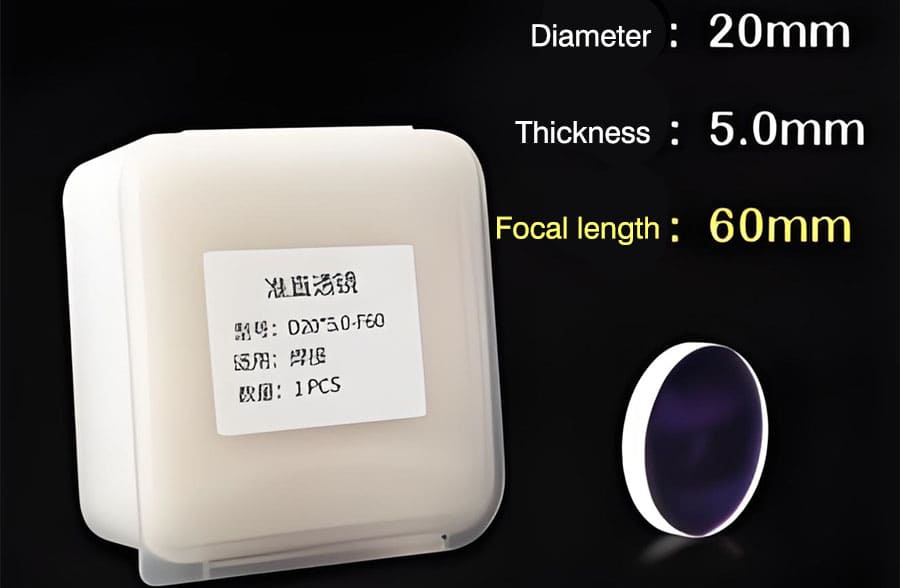

Diameter	20-55mm
Thickness	1-9mm
Light transmittance	99.5%

Strong compatibility

Perfect match for all Raytools BT240 series laser cutting heads.

High-quality materials

Made of high-quality optical materials to ensure long-term durability.

Improved cutting quality

Precise optical design improves the accuracy of laser focus.

Versatility

Laser collimating lens and laser focusing lens are suitable for a variety of laser processing applications.

Laser Collimator Lens & Laser Focusing Lens Functions

Collimator lens for laser can transform divergent laser beams into parallel beams, reducing the scattering and diffraction of the beam during propagation.
Laser beam focusing lens can focus parallel beams to a small point, forming a focus with high energy density.

Packaging Details

At TSCBro, we understand the importance of securing your industrial laser equipment accessories. Eachlaser beam focusing lens is meticulously packaged in custom-designed boxes to ensure it reaches you in perfect condition.

Special Prices for Larger Orders!

Looking for laser collimator lens & laser focusing lens in bulk? Get exclusive discounts with us!

Request a Bulk Quote

Feature	Our Product	Competitor's Product
Material	Industrial-grade	Standard-grade
Accuracy	High Precision	Moderate
Installation Ease	Easy	Complicated
Energy Efficiency	High	Low
Price	Competitive	Expensive

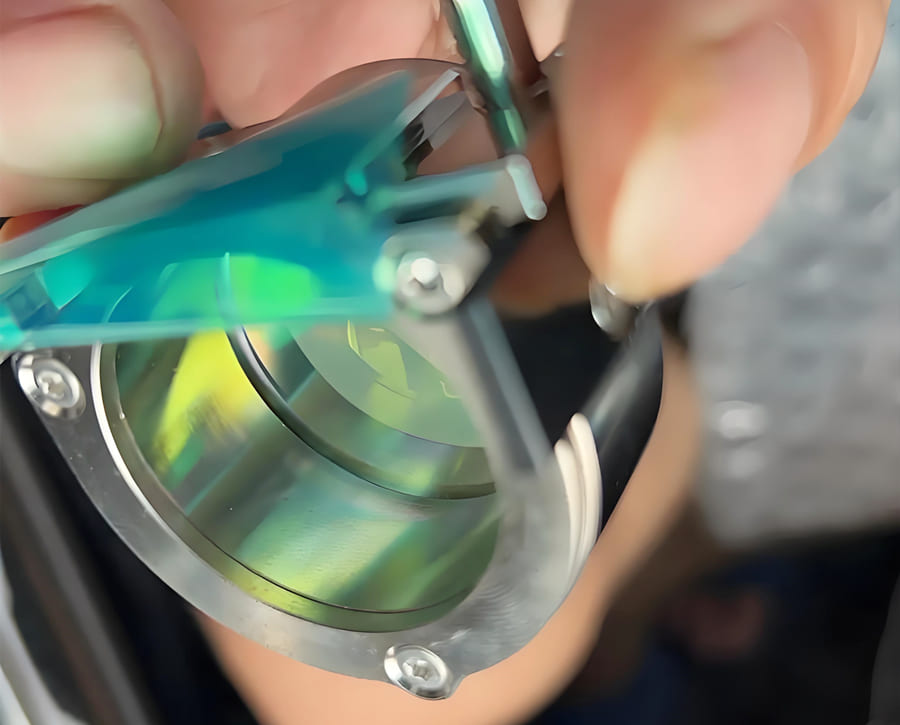

Installation of collimating and laser focusing lens

Install the laser collimator lens

Place the collimator correctly at the exit of the laser according to the equipment manufacturer's instructions.
Adjust the angle of the collimator to ensure that the laser beam can hit the center of the mirror. This step is critical to the output quality of the laser.
Gently fix the collimator using a fixing device (such as a screw or clamp). Make sure the collimator is firmly fixed, but also avoid over-tightening to avoid damaging the lens.

Install the laser focusing lens

According to the design of the laser equipment, install the focusing mirror in an appropriate position, usually at the end of the laser path, close to the position of the processing material.
Adjust the position of the focusing mirror so that the laser focus reaches the ideal focal length. The correct setting of the focal length is crucial to the processing effect.
Similarly, gently fix the focusing mirror and ensure its stability.

FAQ

Can I order samples?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

How is the delivery time?

The delivery time varies from product to product. Please refer to the specific product for reference.

How do you ship and how soon can I receive the goods?

We usually ship by DHL, EMS, TNT, and you can also choose the shipping method you want. It usually takes 3-10 working days to each country. We will confirm the shipping method with you before shipping.

How do I order your products?

Tell us your application and requirements, including wavelength and power.
